Introduction To EDSFF

Summary

Learn some basics of EDSFF (Enterprise and Datacenter Standard Form Factor).

The following information comes from the following pages:

• SNIA SSD Form Factors page for more details.
• Unlocking the Power of Cloud Storage and Compute with EDSFF SSDs for its importance.

Overview

• EDSFF stands for "Enterprise and Datacenter Standard Form Factor" and is not only for SSDs.
• These are purposely built for integrated circuits and move away from the form factors used by HDDs and early SSD integration or adoption.
• All EDSFF (as of this writing) use the same connector, interface and protocol.
  • This means any EDSFF can be switched with another, only limited by the physical dimensions of the unit(s) and system.

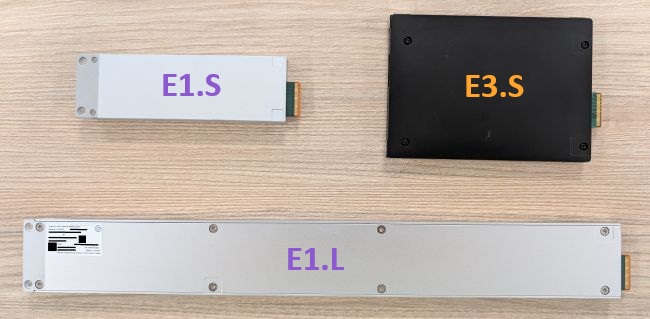

• Solidigm™ creates drives in a few EDSFF types:
  • E1.L
    • Stands for "EDSFF 1U Long". Meant to maximize capacity.
    • Tall enough to fit in a 1U server standing up. They are about 320mm long, their thickness varies
  • E1.S
    • Stands for "EDSFF 1U Short". Meant to replace M.2 110mm form factor.
    • Tall enough to fit in a 1U server standing up. They are about 110-120mm long, their thickness varies.
  • E3.S
    • Stands for "EDSFF 3U Short". Meant to replace U.2 2.5-inch form factor.
    • Tall enough to fit in a 3U server standing up. They are about 110-140mm long, their thickness varies.
